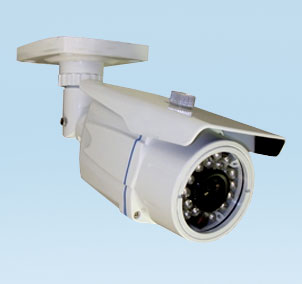

Outdoor Sony NIGHTGUARD-480-W High Resolution Color Bullet Camera

Sony NIGHTGUARD-480-W

The NIGHTGUARD-480-W is an entry level, digital, infrared, color bullet camera, providing a tamper resistant outdoor housing for any indoor/outdoor application. The NIGHTGUARD-480-W features a 480 line, CCD sensor providing excellent color reproduction and remarkable sensitivity in zero lux environments. The camera’s 24-LED array of infrared illuminators can easily distinguish objects at a distance of 60 feet and beyond.



Features:

• Lens Type 3.6mm fixed
• 1/3-Inch Format CCD Sensor
• Digital Signal Processing
• 480 Max TV Lines Resolution
• IP66 Weatherproof Rating
• 60 Feet Zero Lux Illumination
• UL Listed Vandal-proof
• Compact Housing



Specifications:

Model: NIGHTGUARD-480-W
Pick up Element: 1/3"SONY
Effective Picture Elements (H×V): PAL:500(H)×582(V) NTSC:510(H)×492(V)
Horizontal Resolution: 480TV Line
Minimum Illumination: 0.01Lux; 0Lux (with IR LED ON)
S/N Ratio: More than 48dB
Scanning System: 2:1 interface
Synchronous System: Internal, Negative sync.
Auto Electronic Shutter: NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Gama Characteristic: 0.45
IR Distance: 20 Meters (with à5X24PCS Infrared LED)
IR Status: Under 10Lux by CDS
IR Power On: CDS AUTO Control
Video Output: 1Vpp, 75
Auto Gain Control: Auto
Power/Current: DC12V/400mA
Lens: Board Lens 3.6mm/F2.0
Dimension (mm): 175(W) x124(H) x83(D)
Weight: 400g
Storage Temperature: -30~+60
Operating Temperature: -10~+45

DELIVERY
PosOne will deliver only in Oman addresses. Delivery will be within 2-3 working days of receiving your order, subject to availability.
Delivery charges shall be applicable..
Orders cannot be delivered to PO boxes.
No delivery on Fridays. Please contact us via e-mail for more details.
