BIPRO-540L6 Outdoor IR Camera, 100ft IR, 540 TVL, Sony CCD, 6mm Lens

BIPRO-540L6 Outdoor IR Camera

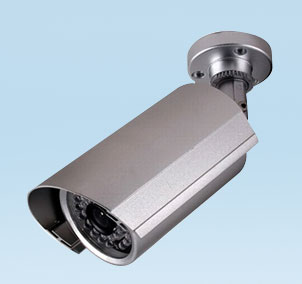

This outdoor IR camera has 36 infrared LED capable of seeing up to 100 feet in the dark. This IR camera is the same body style and high quality Sony CCD as the BIPRO-540L4 IR security camera except that it has a 6mm lens which provides a more zoomed in field of view. The Sony Super HAD CCD supports 540 TV lines of high resolution. This camera is weatherproof and can be used for indoor or outdoor infrared surveillance without adding an additional housing. The camera is also equipped with a sun shield to help protect the lens and sensor from direct sunlight damage. The 6mm lens provides an 11.5 foot wide field of view at 15 feet away. This camera and mounting bracket are silver. The mount of this security camera completely concealed the power and video cable.



Features:

• Weatherproof IR Camera
• SONY/SHARP Color CCD
• IR LED: .48PCS, IR Distance: 100 ft.
• Water Resistance: IP66
• Auto White Balance (AWB)
• Lens: Board Lens 6mm / F2.0 or 4mm/F2.0
• Dimension: 143(W) x 75(H) x 75(D)mm



Specifications:

Image Sensor: 1/3" SONY
Horizontal Resolution: 540 TV Line
Pixels: PAL:795(H) x 596(V) NTSC: 811)H x 508(V)
TV System: PAl/NTSC
IR LED: 48 PCS
IR series Distance: 100 feet
Lens: 6mm
Sync System: Intenal
IR Status: Under 10 Lux by CDS
Usable Illumination: 0 Lux/F2.0 (LED ON)
IR Power on: CDS Auto Control
S/N Ratio: >48dB (AGC OFF)
Gamma Correction: 0.45
Video Out: Composite Signal (1.0Vp-p, 75 Ω)
Scanning System : PAS 625 Lines, 50 Field/Sec; NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time: Auto PAS 1/50-1/100,000Sec; NTSC 1 / 60-1 / 100,000Sec
Operation Temperature: -10°C ~ +50°C RH 95% Max
Storage Temperature -20°C ~ 60°C RH95% Max
White Balance: Auto
Power Source: DC 12V 300mA
Dimension: 143(W) x 75(H) x 75(D)mm
Weight: 750g
