540 TVL SUPER HIGH Resolution Color Dome Security Camera

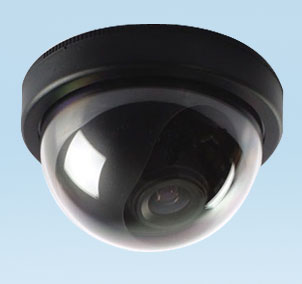

540 TVL Color Dome Camera

This SUPER HIGH resolution color dome camera with SONY image sensor is small in size and perfect for discreet monitoring in high-risk areas where security is a must.



Features:

• Color Dome Camera
• SONY 1/3" Color CCD
• 0.5 Lux Minimum Illumination
• 540 TV Lines HIGH Resolution
• 3.6mm Lens
• BNC Video and 12V DC Jacks On-Board



Specifications:

Image Sensor: 1/3" Sony Color CCD
Picture Elements: (Horizontal x Vertical in mm)
EIA/NTSC: 512 x 492; CCIR/PAL: 512 x 582
Horizontal Sync. Frequency: EIA/NTSC: 15.734KHz; CCIR/PAL: 15.625KHz
Vertical Frequency: EIA/NTSC: 60Hz; CCIR/PAL: 50Hz
Clock Frequency: 28.636Mhz (NTSC)
Horizontal Resolution: 540 Lines
Minimum Illumination: 0.5 Lux
Scanning System: 2:1 Interlace
Signal to Noise Ratio: 48 dB
Electronic Shutter Speed: 1/125.000 / Sec Linear
Lens: 3.6mm / F2.0
Video Output: 1V p-p, 75 ohms
Gamma: 0.45
Power Supply: 12V DC
Power Consumption: 200mA
Weight: 140g
Dimensions: 100 x 86mm
Storage Temperature: -30°C to +60°C
Operating Temperature: -10°C to +45°C
